2HB (AccuSlide) Linear Tables

2HB（AccuSlide）直線工作臺

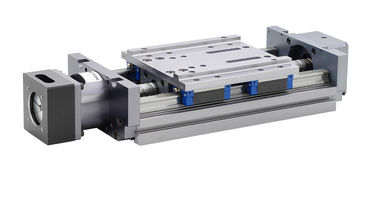

Thomson's 2HB (AccuSlide) is a high performance slide table based on Thomson's continuously supported, ProfileRail system using square rail technology. The units are designed to absorb extremely high load torques and offer superior performance life in difficult applications.

產(chǎn)品介紹

Let Thomson Help You Make Your Selection!

2HB Linear Table Specifications:

Specifications / Shaft Size  2HB10 2HB20
 Profile size (width x height): mm (in)  100 x 60 (3.9 x 2.4) 200 x 90 (7.9 x 3.5)
Max Stroke Length: mm (in)  1375 (54.13)  2760 (108.7)
Max Linear Speed: m/s (in/s)  0.47 (18.5)  0.75 (29.5)
 Max Acceleration: m/s2 (in/s2)  9.8 (386)  9.8 (386)
Repeatability: ± mm (in)  0.005 (0.0002)  0.005 (0.0002)
 Max Input Speed: rpm (rev/s)  2800 (46.7)  1800 (30)
Operation Temperature Limits: °C (°F)  -20 to 80 (-4 to 176)  -20 to 80 (-4 to 176)
Max Dynamic Load Fx: N (lbf)  2100 (472)  4697 (1056)
Max Dynamic Load Fy: N (lbf)  8000 (1798)  34000 (7644)
 Max Dynamic Load Fz: N (lbf)  8000 (1798)  34000 (7644)
 Max Dynamic Load Torque (Mx): Nm (lbf-in)  279 (2469)  2463 (21799)
 Max Dynamic Load Torque (My): Nm (lbf-in)  216 (1912)  1903 (16843)
Max Dynamic Load Torque (Mz): Nm (lbf-in)  216 (1912)  1903 (16843)
Max Drive Shaft Force (Frd): N (lbf)  533 (119.8)  533 (119.8)
Max Drive Shaft Torque (Mta): Nm (lbf-in)  1.86 (16.5)  15.5 (137.2)
Screw Diameter: mm (in) 16 (0.63) 25 (0.98)
Screw Lead: mm (in)  5, 10 (0.2, 0.4)  5, 10, 25 (0.2, 0.4, 1.0)
Weight: kg (lb)
of unit with zero stroke
of every 100 mm of stroke
of each carriage
2.59 (5.71)
0.69 (1.52)
0.82 (1.81)
13.32 (29.37)
1.70 (3.75)
4.47 (9.86)

2HB Linear Table Feature Highlights:

  • An integral ball screw assembly
  • T-slots in carriage
  • Low profile and compact
  • Long travel life capability
  • Double acting seals

2HB Linear Table Option Highlights:

  • Bellows way covers
  • Shroud covers
  • Limit switch packages
  • Radial mount ball screw shaft extenders
  • Lubrication system
