WV06D005-03100-03750-GN0000-05

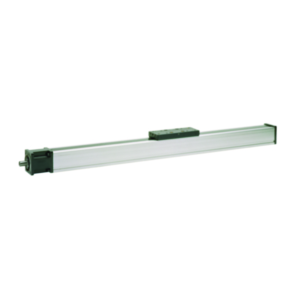

直線運動單元, WV60D, 滾珠絲桿 Drive, No Guides Guide, 0.01 毫米 Repeatability, 雙螺母預加載, 3100 毫米 Stroke, 3750 毫米 Overall Length, 單個標準滑塊, 5 毫米 Travel Per Shaft Rev, Double Shafts, First Without Keyway And Second For Encoder, 0.25 m/s Maximum Linear Speed

取代
專利自調整塑料帶蓋
專列絲杠支撐系統
單元需要外部導軌

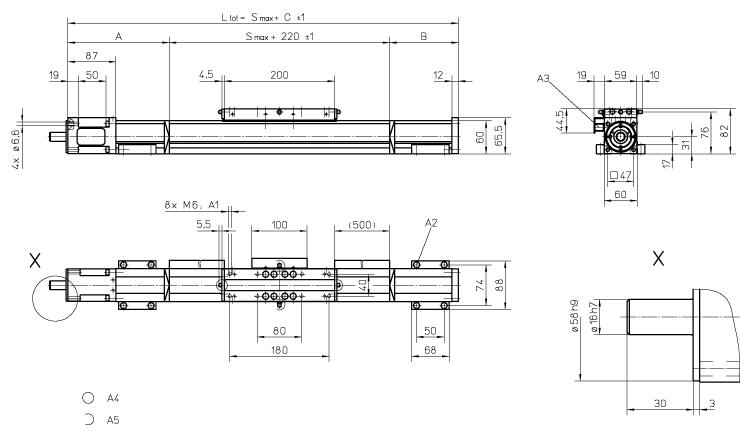

Dimensions

尺寸	價值
Ltot	3750 毫米
Smax（行程）	3100 毫米
Travel Per Shaft Rev	5 毫米

Specifications

Specifications	價值
Carriage Type	單個標準滑塊
Drive	滾珠絲桿
Guide	No Guides
Profile size (width × height)	60 x 60 mm
Screw Nut Type	雙螺母預加載
Shaft Configuration	Double Shafts, First Without Keyway And Second For Encoder
Shaft Orientation	Inline
Shaft Quantity	Double Shafts
Weight	23.2 kg
保護選項	Standard Protection

Performance

Performance	價值
Input speed, maximum	3000 轉每分
Maximum Acceleration	20 m/s²
Maximum Linear Speed	0.25 m/s
Repeatability	0.01 毫米
