WHZ08Z200-01100-01510-MN0000-7

直線運動單元, WHZ80, Belt, Moving Profile Drive, 滾輪 Guide, 0.05 毫米 Repeatability, 1100 毫米 Stroke, 1510 毫米 Overall Length, 單個標準滑塊, 200 毫米 Travel Per Shaft Rev, Shaft On Both Sides With Keyway, 1480 N, 10000 Maximum Linear Speed

取代
帶驅動
外部導向輪
速度最高10 m/s

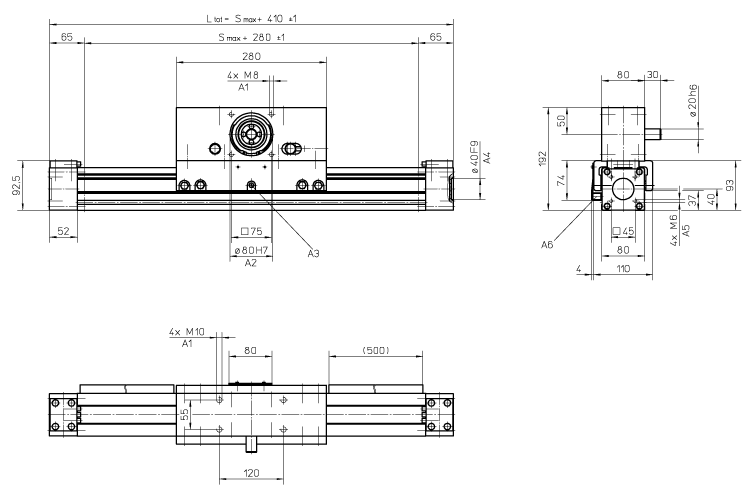

Dimensions

尺寸	價值
Ltot	1510 毫米
Smax（行程）	1100 毫米
Travel Per Shaft Rev	200 毫米

Specifications

Specifications	價值
Belt Type	32 ATL 5
Carriage Type	單個標準滑塊
Drive	Belt, Moving Profile
Guide	滾輪
Profile size (width × height)	80 x 80 mm
Shaft Configuration	Shaft On Both Sides With Keyway
Shaft Orientation	Right Angle
Shaft Quantity	Double Shafts
Weight	27.9 kg
保護選項	Standard Protection
額定行程	1100 毫米

Performance

Performance	價值
Input speed, maximum	3000 轉每分
Maximum Acceleration	40 m/s²
Maximum Linear Speed	10000
Repeatability	0.05 毫米
負載，動態	1480 N
