PC25SXXXXB03-0310XM1

PC25SXXXXB03-0310XM1

Download Full Catalog

PC25SXXXXB03-0310XM1

Can't find what you're looking for? Go to the Product Selector

PC25SXXXXB03-0310XM1

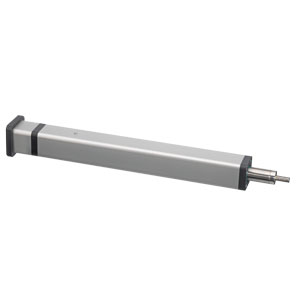

執(zhí)行器，精密, Motor not included, Direct Drive, Inline, 310 毫米 Stroke, 3 毫米 Travel Per Shaft Rev, No Brake, 1250 N

緊湊、堅固、可靠
標準防護等級為IP65
高精度滾珠螺母
不銹鋼延長管
不銹鋼外螺紋桿接頭
單點潤滑
大直徑滾珠絲杠
平滑外輪廓
安裝附件符合氣動ISO標準

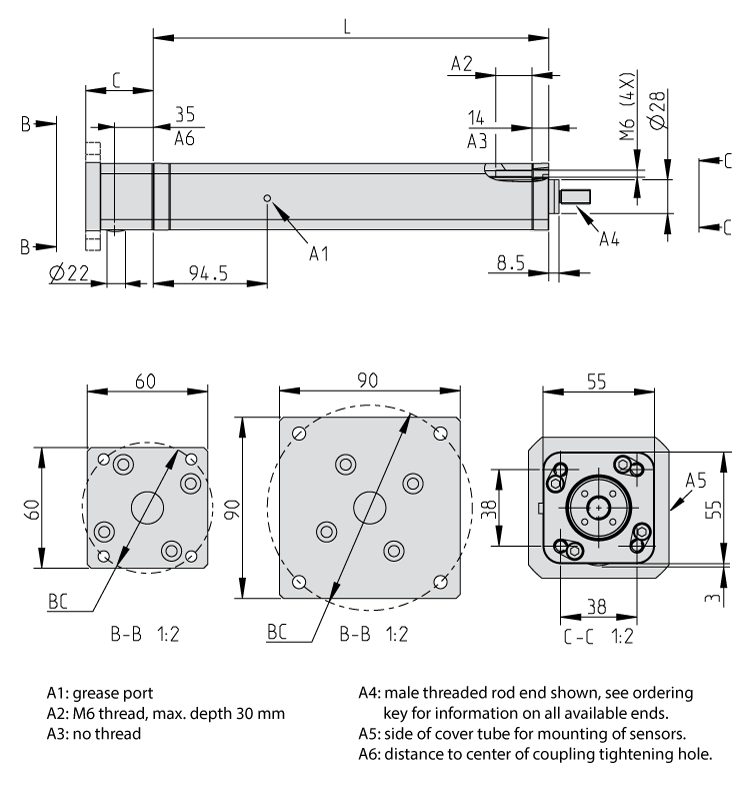

Dimensions

dimensions

尺寸	價值
[L]	411.5 毫米
Smax（行程）	310 毫米
Travel Per Shaft Rev	3 毫米
絲杠直徑，標稱	20 毫米

Specifications

Specifications	價值
Adapter Options, Rod End	Male thread, M10x1.25
Brake	No Brake
Cylinder Mounting Options	No Mounting option included
Drive Type	Direct Drive, Inline
Motor Type	Motor not included
Profile Size	34 x 34 mm
Temperature Max	70 °C
Temperature Min	-20 °C
Weight	1.2 kg
防護等級	IP65
絲杠類型	滾珠絲桿

Performance

Performance	價值
Input speed, maximum	8000 轉(zhuǎn)每分
Maximum Acceleration	10 m/s²
Maximum Linear Speed	400
Repeatability	0.01 毫米
負載，動態(tài)	1250 N

Order Code

order code
