PC25PA092B10-0100CJ1

PC25PA092B10-0100CJ1

Download Full Catalog

PC25PA092B10-0100CJ1

Can't find what you're looking for? Go to the Product Selector

PC25PA092B10-0100CJ1

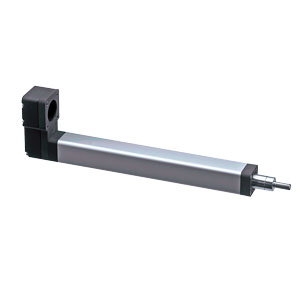

執行器，精密, Motor not included, Belt Gear Drive, Parallel, 100 毫米 Stroke, 10 毫米 Travel Per Shaft Rev, No Brake, 1250 N

緊湊、堅固、可靠
標準防護等級為IP65
高精度滾珠螺母
不銹鋼延長管
不銹鋼外螺紋桿接頭
單點潤滑
大直徑滾珠絲杠
平滑外輪廓
安裝附件符合氣動ISO標準

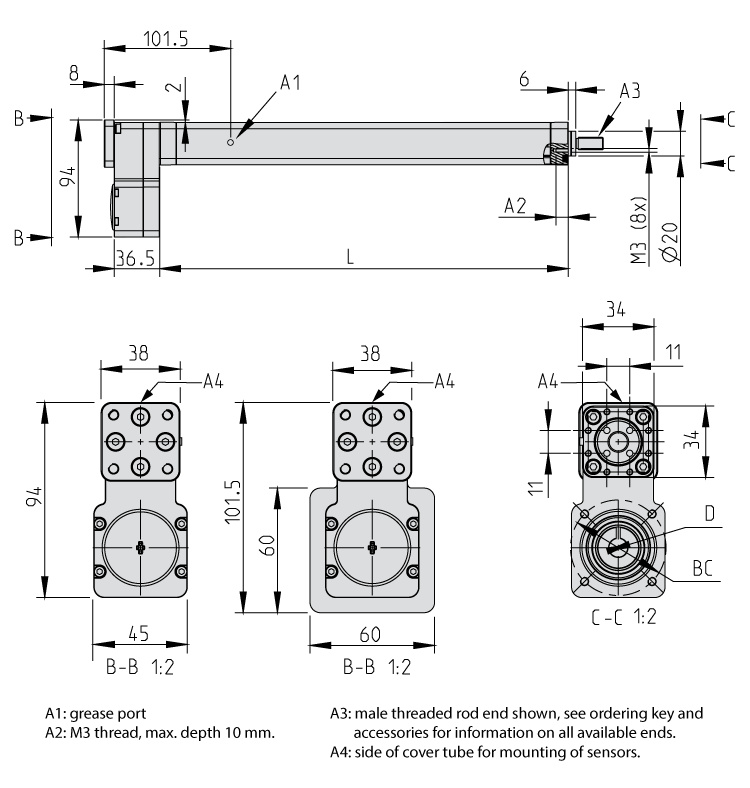

Dimensions

dimensions

尺寸	價值
[L]	201.5 毫米
Smax（行程）	100 毫米
Travel Per Shaft Rev	10 毫米
絲杠直徑，標稱	10 毫米

Specifications

Specifications	價值
Adapter Options, Rod End	Spherical Joint, 10mm dia
Brake	No Brake
Cylinder Mounting Options	Rear Clevis
Drive Type	Belt Gear Drive, Parallel
Motor Type	Motor not included
Profile Size	34 x 34 mm
Temperature Max	70 °C
Temperature Min	-20 °C
Weight	0.99 kg
防護等級	IP65
絲杠類型	滾珠絲桿

Performance

Performance	價值
Input speed, maximum	8000 轉每分
Maximum Acceleration	10 m/s²
Maximum Linear Speed	1333.33
Repeatability	0.01 毫米
負載，動態	1250 N
