MF07K207-A00D247

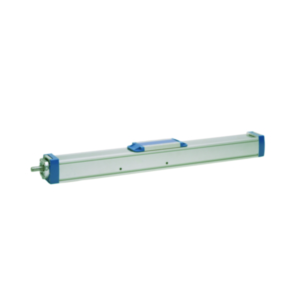

直線運動單元, Movopart M75, 滾珠絲桿 Drive, 滾珠 Guide, 0.05 毫米 Repeatability, 無預加載, 2000 毫米 Stroke, 2548 毫米 Overall Length, 單個標準滑塊, 20 毫米 Travel Per Shaft Rev, Single Shaft With Keyway, 1000 Maximum Linear Speed, 取代

取代
自調節不銹鋼帶蓋
內部滾珠導軌
可選用沖洗防護型

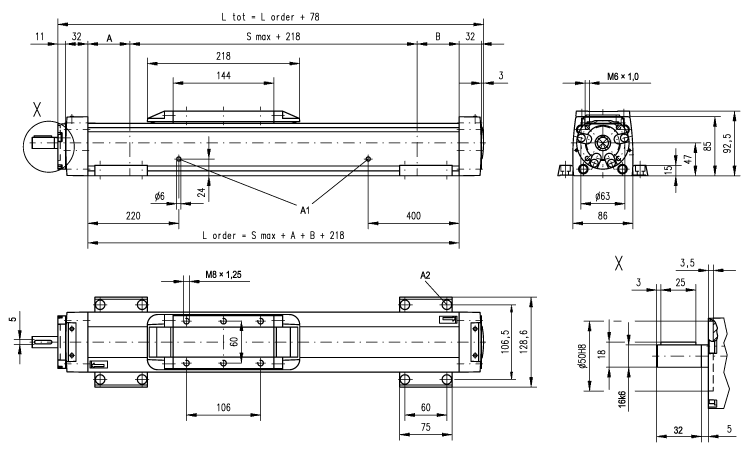

Dimensions

尺寸	價值
Ltot	2548 毫米
Smax（行程）	2000 毫米
Travel Per Shaft Rev	20 毫米

Specifications

Specifications	價值
Carriage Type	單個標準滑塊
Drive	滾珠絲桿
Guide	滾珠
Profile size (width × height)	86 x 75 mm
Screw Nut Type	無預加載
Shaft Configuration	Single Shaft With Keyway
Shaft Orientation	Inline
Shaft Quantity	Single Shaft
Weight	34 kg
保護選項	Standard Protection

Performance

Performance	價值
Input speed, maximum	3000 轉每分
Maximum Acceleration	8 m/s²
Maximum Linear Speed	1000
Repeatability	0.05 毫米
