1BA04AH0L

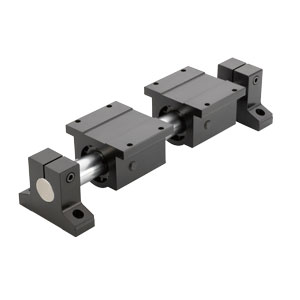

直線導軌, 1BA, Round Shaft, End supported, Low Support, ASB, 2 Pillow Blocks, 0.250 英寸, One Guide Shaft, 120 磅力 Dynamic Load Capacity

末端支撐導向軸組件（英制）組成：
兩個單軸承座，閉合型，英制
2個ASB軸支撐
一個60 Case®導向軸

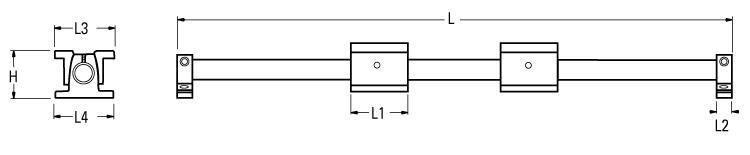

Dimensions

dimensions

尺寸	價值
[d] 軸，標稱直徑	0.25 英寸
[H]	0.937 英寸
[L1]	1.19 英寸
[L2]	0.5 英寸
[L3]	1.63 英寸
[L4]	1.5 英寸

Specifications

Specifications	價值
Pillow Block or Carriage	2 Pillow Blocks
Shaft Style	Round Shaft
Support	End supported, Low Support
Temperature Max	185 °F
材質(zhì)	鋼；鋁合金；塑料

Performance

Performance	價值
負載能力，動態(tài)	120 磅力

Order Code

order code
